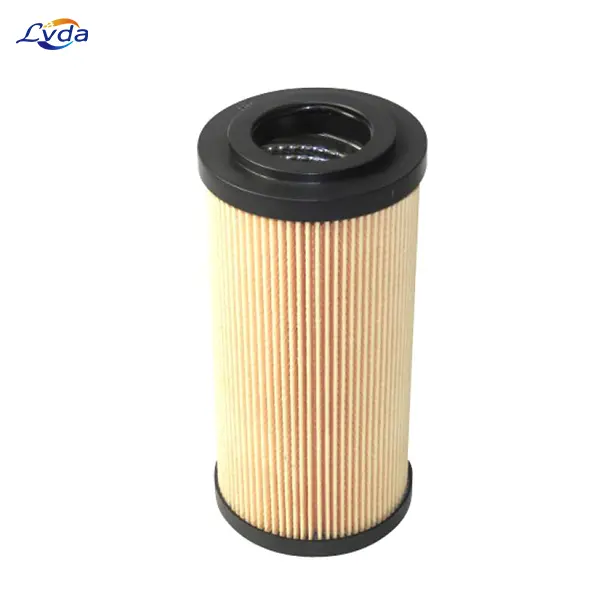

C2501 Hydraulic Cartridge Filter Element
Categories:
Model Number :
- C2501
Lvda C2501 hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
We stock 10,000+ products, Please contact us for the latest quotation
7*24 Customer Service. Shipped Within 3 Days.
Filter compatible with C2501
Compatible with OEM filter in fit, form and function.
Equipped with advanced filtration technology, these filters effectively remove particles, dirt, and impurities from hydraulic fluids or oil, preventing damage to critical components.
Specification
| Outer Diameter | Inner Diameter | Length | Δ Collapse Pressure | Seal Material | Temperature Range |
| 99.0 mm | 51.5 mm | 210.0 mm | 10 bar | Nitrile | -30 - +100°C |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| FBN | FBH25M10 |
| HYDROLINE | CE250010 |
| IKRON | HEM0230210SP010 , HHC05295 |
| MP FILTRI | CU250P10N |
| OMT | CFI250A , CFI250C10 |
| SF-FILTER | HY18148 |
| SOFIMA HYDRAULICS | CRH070CD1 , RH70CD1 |
| UFI | ERD41NCC |
| HIFI | SH 93034 |
