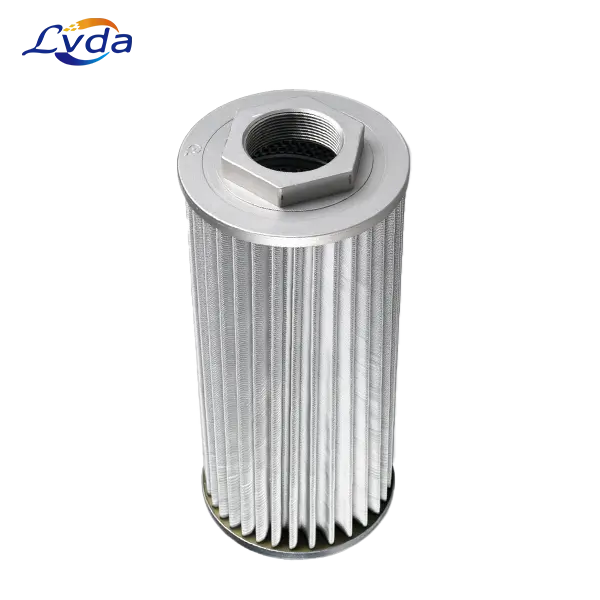

P171901 Hydraulic Suction Filter
- P171901
- FIOA500
Lvda P171901 hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
7*24 Customer Service. Shipped Within 3 Days.
P171901 is a high-performance, tank-mounted hydraulic suction strainer designed to safeguard the hydraulic system's heart—the pump. Installed directly inside the hydraulic fluid reservoir (oil tank) or mounted to the tank wall below the oil level, its primary purpose is to act as the first line of defense against catastrophic failure.
Specification
| Outer Diameter | Thread Size | Overall Length | Efficiency Beta 2 |
| 140 mm (5.51 inch) | 2 BSP/G | 345 mm (13.58 inch) | 90 micron |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| BALDWIN | PT23186 |
| HIFI | SH 77704 |
| FBN | FI765M90 |
| FILTREC | FS186B8T125 , D133G15A |
| FILTREC OLD PN | FS186T125 |
| IKRON | HF41040239ASMS090GLA01B1 , HHB52030 |
| MAIN FILTER | MF0062251 |
| MP FILTRI | MPA280G1M90 , STR1403SG1M90 , MPA280M90AG |
| SOFIMA HYDRAULICS | FAM75MNB80 , FAM075MNB80 , 665050 , FAM100MNB80 , FAM075MNXSB8S |
