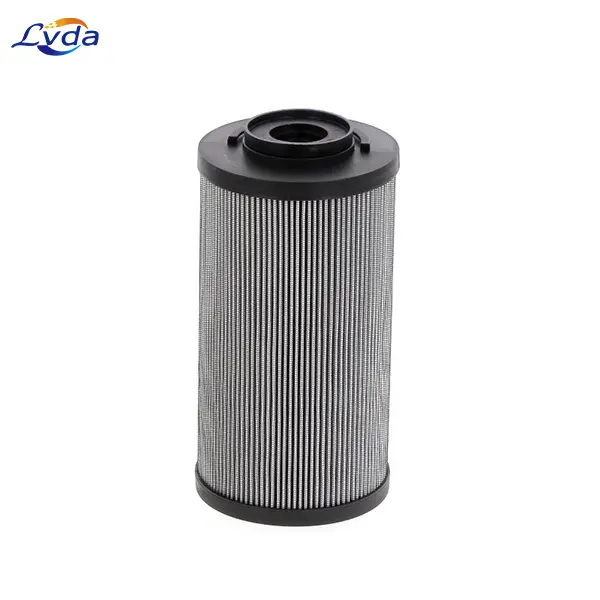

R164G10B Hydraulic Filter
- R164G10B
Lvda R164G10B hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
7*24 Customer Service. Shipped Within 3 Days.
R164G10B is a hydraulic return filter element manufactured by lvda, a renowned Italian filtration brand. It is widely used in industrial hydraulic systems, construction machinery, and hydraulic power units to filter fluid returning to the reservoir, keeping the system clean and protecting sensitive components.
Filter Media: Inorganic Fiberglass
Micron Rating: 10 Micron
Seal Material: NBR (Nitrile rubber), compatible with most mineral and synthetic hydraulic oils.
Bypass Valve: Built-in bypass valve, typically cracking at 1.7 bar (24.6 psi).
Flow Direction: Out-to-In
Specification
| Efficiency | Outer Diameter | Inner Diameter | Length | Bypass Pressure | Temperature Range |
| 10µ | 130.0 mm | 64.5 mm | 250.0 mm | 1.7 BAR bar | -30 - +100°C |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| AIRFIL | AFPOVL36110 |
| BALDWIN | PT9261MPG |
| DOMANGE | CFDR64A10 |
| DONALDSON | CR600.02 , P171573 |
| DUPLOMATIC | FRTE200F10S10 , FRTE200F10S10N |
| FAI FILTRI | F60B10 |
| FBN | FXRB4M10A |
| FILTER MART | 282735 |
| FLEETGUARD | HF35302 |
| IKRON | HEK0540239FSFG010VMB17B , HHC01342 , HHC01391 |
| LIEBHERR | 510669708 |
| MAIN FILTER | MF0062430 |
| MP FILTRI | MF4003A10HB , MF4003A10NB |
| OMT | CR224F10R , CR350G , CR350GN |
| SF-FILTER | HY12113 , HY121132 , HY18473 |
| SOFIMA HYDRAULICS | CRE150FD1 , RE150FD1 |
| UFI | ERA53NFC |
| UNI-CARDAN | CMF350GN |
| HIFI | SH 63371 |
