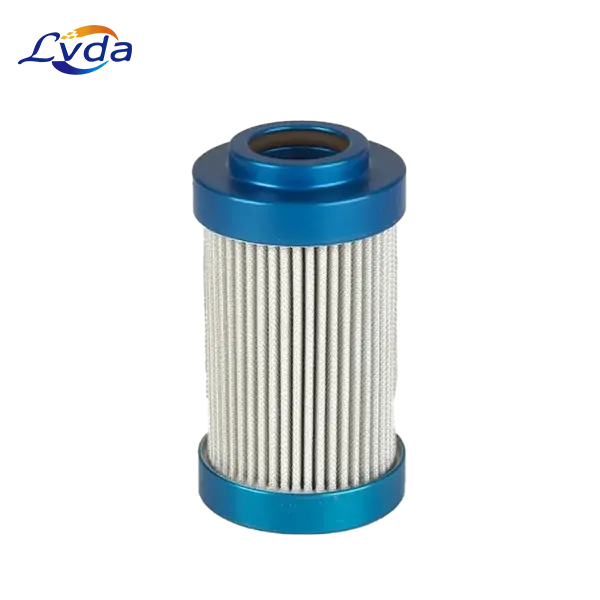

0060D003BH4HC Pressure Filter
- 0060D003BH4HC
- 01253038
- 0060D003BH3HC
- 0060D003BHHC
- 0060D003BHHC2
- 02055958
Lvda 0060D003BH4HC hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
7*24 Customer Service. Shipped Within 3 Days.
0060D003BH4HC is a high-pressure line hydraulic oil filter element. It is designed for high-pressure hydraulic systems, power units, and machinery to filter out solid particles and gelatinous substances, protecting sensitive downstream components like servo and proportional valves.
0060: Specifies the size and flow capacity (Nominal flow rate of approximately 60 L/min).
D: Indicates the filter element type is for high-pressure line pressure filters.
003: Specifies an absolute filtration rating of 3 microns (μ m) for ultra-fine contamination control.
BH4HC: Represents High Collapse resistant 4th generation glass fiber media, offering extreme pressure resistance
Specification
| Efficiency | Outer Diameter | Inner Diameter | Length | Collapse Pressure | Temperature Range |
| 3µ | 47.0 mm | 22.1 mm | 84.0 mm | 210 bar | -30 - +100°C |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| HIFI | SH 75001 |
| AIRFIL | AFKOVL2643KP |
| BEHRINGER | BE60P03AH |
| DONALDSON | 581.50 , P170586 |
| EPPENSTEINER | 9.60LAH3SLF000P , 9.60LAH3XLF000P , E400HL60H32LLLA |
| FILTER MART | 050041 |
| FINN FILTER | FC7201A003BS , FFKPVL17201A3ABS |
| FLEETGUARD | HF30319 |
| HY-PRO | HP06DHL43MB |
| INTERNORMEN | 306002 , 02.0060D.3VG.HR.HC.E.P |
| MP FILTRI | DP040A003AHP01 , MP9200 |
| PALL | HC2207FCP3H , HC2207FDP3H |
| PARKER | G03064 , PR3064 |
| PUROLATOR | 0060EAH034N1 |
| QUALITY FILTRATION | QH061DA03B |
| REXROTH | 9.60LAH3XLF000M , 960LAH3XLF000M , R928017117 |
| SCHROEDER | SBF0061DS1B , SBF0061DZ3B |
| SEPARATION TECHNOLOGIES | H060D03H |
| SF-FILTER | HY13015 |
| SOFIMA HYDRAULICS | 30689 , SHD0060FT21 |
| STAUFF | SE014F03B4 , SE014H03B , SE014H03B4 |
| STEP FILTERS | HID41523 |
| TRIBOGUARD | 060D003H |
| VICKERS | V0604B1H03 |
