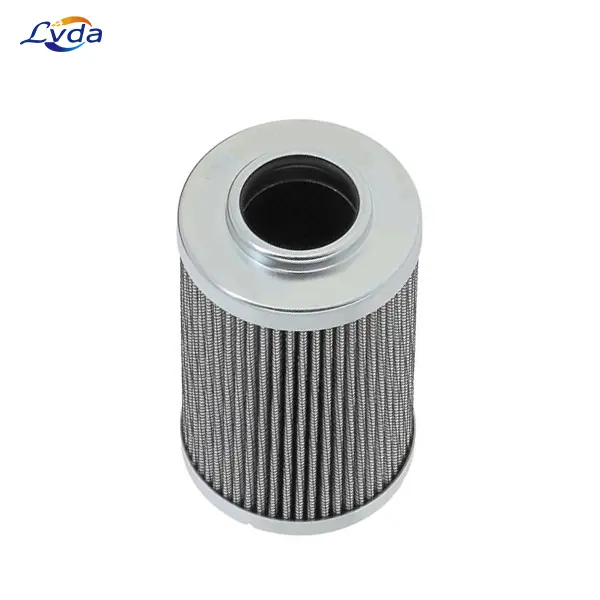

0160D020ON Hydraulic Filter Element
- 0160D020ON
- 01325392
- 01260884
- 02055753
- 0160D020BN3HC
- 1260884
- 1325392
- 2055753
Lvda 0160D020ON hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
7*24 Customer Service. Shipped Within 3 Days.
0160D020ON is the part number for a high-pressure line hydraulic oil filter element .
0160: Size / nominal flow rate capacity.
D: Pressure filter element type (designed for high-pressure lines).
020: Filtration rating of 20 microns (µm).
ON: high-efficiency microglass media with low pressure drop and high dirt-holding capacity.
Specification
| Efficiency | Outer Diameter | Inner Diameter | Length | Collapse Pressure | Temperature Range |
| 20µ | 69.0 mm | 34.2 mm | 115.0 mm | 20 bar | -30 - +100°C |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| HIFI | SH 75030 |
| AIRFIL | AFKOVL26120 |
| BALDWIN | PT8957MPG |
| BEHRINGER | BE160P25A |
| DONALDSON | 484.53 , P173194 |
| EPPENSTEINER | 9.160LAH20SLA000P , 9.160LAH20XLA000P , 9.160P20A000P , E400HL160H20LLLA |
| FBN | HI204910 |
| FILTER MART | 010545 , 050072 |
| FILTRATION GROUP | 7889439 , 890021SM16NBR |
| FINN FILTER | FC7251F025BS , FFKPVL1725125ABS |
| HY-PRO | HP16DNL525MB |
| INTERNORMEN | 300413 , 02.0160D.20VG.30.HC.E.P |
| KOMATSU | 694402 |
| LIEBHERR | 510642214 |
| MP FILTRI | DP090A020ANP01 , MP9407 |
| PALL | HC2216FCT4H , HC2216FKT4H |
| PARKER | G03109 , G03117 , PR3117 |
| PUROLATOR | 0160EAM202N1 , 0160EAM252N1 |
| QUALITY FILTRATION | QH160DA25B |
| REXROTH | 9.160LAH20XLA000M , 9.160P20A000M , 9160LAH20XLA000M , 9160P20A000M , R928017189 , R928017205 |
| SCHROEDER | SBF0160DS15B , SBF0160DZ25B |
| SEPARATION TECHNOLOGIES | H160D20N |
| SF-FILTER | HY13068 , HY13510 |
| SOFIMA HYDRAULICS | 30648 , 30701 , SHD0160FV11 |
| STAUFF | SE045D20B4 , SE045E20B4 , SE045G20B , SE045G20B4 |
| STEP FILTERS | HID11985 |
| TRIBOGUARD | 160D020N |
| VICKERS | V0162B1C20 |
| WOODGATE | WGHH16020DB |
