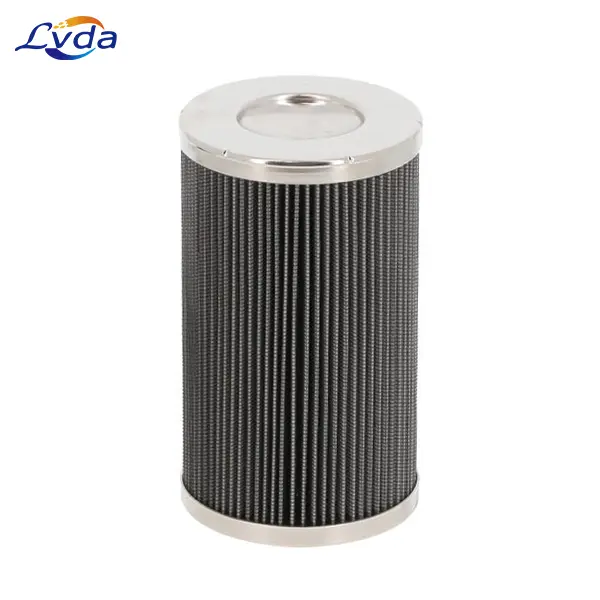

0330D100W-HC Hydraulic Oil Filter
- 0330D100WHCW
- 00303823
- 01264472
- HP33DNL7100WB
Lvda 0330D100W-HC hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
7*24 Customer Service. Shipped Within 3 Days.
0330D100W-HC designates a high-pressure hydraulic oil filter element. It is widely used in industrial hydraulic systems, heavy machinery, and lubrication units to remove solid particulate contaminants and protect downstream components.
0330: Specifies the size / flow capacity of the element.
D: Indicates the filter element type is for pressure line filters .
100: Denotes a filtration rating of 100 microns (µm).
W: Signifies the filter material is stainless steel wire mesh, which provides high temperature/pressure resistance and allows the element to be cleaned and reused.
HC: Represents High Collapse resistance, utilizing an optimized pleat structure to withstand high differential pressures.
Specification
| Efficiency | Outer Diameter | Inner Diameter | Length | Collapse Pressure | Temperature Range |
| 100µ | 90.5 mm | 48.2 mm | 162.0 mm | 20 bar | -30 - +100°C |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| HIFI | SH 75189 |
| HY-PRO | HP33DNL7100WB |
| REXROTH | 9.330LAG100A000M , 9330LAG100A000M , R928022436 |
| SEPARATION TECHNOLOGIES | H330D100WHC |
