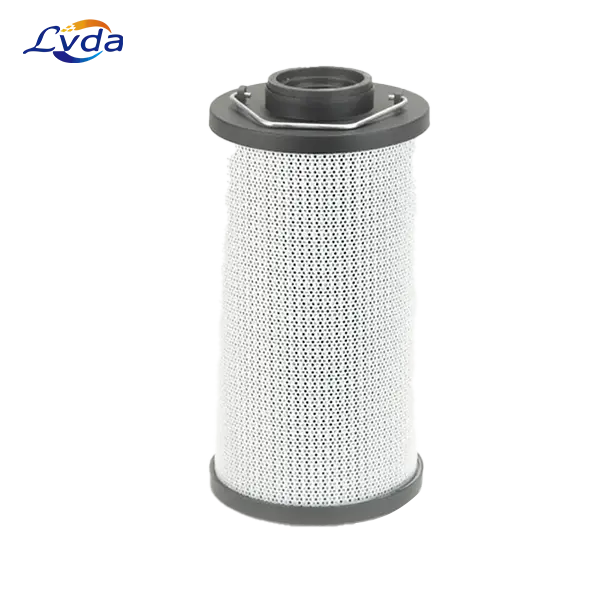

0330R020BN4HC Hydraulic Return Line Filter
- 0330R020BN4HC
- 0330 R 020BN4HC
- 01262994
- 1262994
- 0330R020BNHC
- 0330R020BNHC2
- 0330R020BN2HC
- 0330R020BN3HC
- 0330R020ON
Lvda 0330R020BN4HC hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
7*24 Customer Service. Shipped Within 3 Days.
0330R020BN4HC is a high-performance hydraulic return line filter element manufactured by lvda.
Type: Return Line Filter Element
Micron Rating: 20 µm (absolute filtration)
Media Material: High-efficiency inorganic glass fiber
Flow Direction: From outside to inside
Application: Used in hydraulic oil and lubrication systems to remove solid particle contaminants.
Specification
| Efficiency | Outer Diameter | Inner Diameter | Length | Bypass Pressure | Temperature Range |
| 20µ | 94.5 mm | 48.2 mm | 194.0 mm | 3.0 BAR bar | -30 - +100°C |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| DONALDSON | HR33003 , P173170 , P566681 |
| PARKER | 938284Q , G03310 , PR3310 |
| PALL | HC2246FKT6H50 , HC2238FCTS6H |
| BOSCH REXROTH | 10330LAH20XL0006M , 10330LAPWR20A006MSO3000 , R928017551 |
| EPE | 400HL330H20LLLA , E30TR330H20LLLA |
