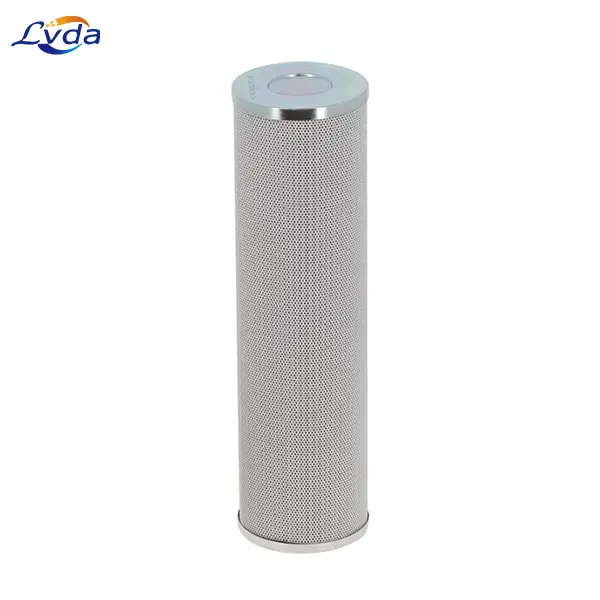

0660D010ON Hydraulic Oil Filter
- 0660D010BN4HC
- 01250495
- 01252803
- 01266713
- 1303903
- 02055747
- 2055747
- 0660D010BN3HC
Lvda 0660D010ON hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
7*24 Customer Service. Shipped Within 3 Days.
0660D010ON is a premium-tier, high-efficiency pressure filter element designed for industrial hydraulic and lubrication systems. Featuring glass fiber technology, this element is engineered for high-pressure lines to protect sensitive downstream components from fluid contamination.
Every element is manufactured and tested under strict quality controls in accordance with:
ISO 2941: Verification of collapse/burst resistance
ISO 2943: Verification of material compatibility with fluids
ISO 3724: Determination of resistance to flow fatigue
ISO 3968: Evaluation of pressure drop versus flow characteristics
ISO 16889: Multi-pass method for evaluating filtration performance (Beta ratio and dirt-holding capacity)
Specification
| Efficiency | Outer Diameter | Inner Diameter | Length | Collapse Pressure | Temperature Range |
| 10µ | 90.5 mm | 48.2 mm | 328.0 mm | 20 bar | -30 - +100°C |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| HIFI | SH 75060 |
| AIRFIL | AFKOVL26910 |
| BALDWIN | PT9303MPG |
| BEHRINGER | BE660P12A |
| BILLION | WN200105 |
| DONALDSON | 489.52 , P170612 |
| EPPENSTEINER | 9.660LAH10SLA000P , 9.660LAH10XLA000P , E400HL660H10LLLA |
| FBN | HI104669 |
| FILTER MART | 050114 , 324415 |
| FILTRATION GROUP | 7889660 , 890024SM10NBR |
| FINN FILTER | FC7273F010BS , FFKPVL1727310ABS |
| FLEETGUARD | HF30279 , HF6881 |
| GALTECH | CARFI01 |
| HY-PRO | HP33DNL1412MB |
| INTERNORMEN | 300438 , 02.0660D.10VG.30.HC.E.P |
| MANN + HUMMEL | HD1066 |
| MP FILTRI | DP138A010ANP01 , MP9706 |
| NETSTAL | 9641450173 |
| PALL | HC2233FCS13H , HC2233FKS13H |
| PARKER | G03203 , PR3203 |
| PUROLATOR | 0660EAM122N1 |
| QUALITY FILTRATION | QH660DA12B |
| REXROTH | 9.660LAH10XLA000M , 9660LAH10XLA000M , ABZFEN0350101XMA , R928017404 |
| SANY | B222100000451 |
| SCHROEDER | SBF0660DS7B , SBF0660DZ10B |
| SEPARATION TECHNOLOGIES | H660D10N |
| SF-FILTER | HY13127 |
| SOFIMA HYDRAULICS | 30722 |
| STAUFF | SE160D10B4 , SE160E10B4 , SE160G10B , SE160G10B4 |
| STEP FILTERS | HID12057 |
| TOROS | 120251321 |
| TRIBOGUARD | 660D010N |
| UFI | SHD0660FD1 |
| VICKERS | V0662B2C10 |
| WOODGATE | WGHH66010DB |
