2600R003ON Hydraulic Filter Element
- 2600R003ON
Lvda 2600R003ON hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
7*24 Customer Service. Shipped Within 3 Days.
2600R003ON is a high-performance hydraulic return line filter element. It is designed to remove fine particulate contamination from hydraulic fluids right before they flow back into the reservoir system, protecting critical machinery components.
Filtration Rating: 5 micron (μm), providing absolute fine filtration.
Beta Rating: ≥ 1000 (99.9% filtration efficiency).
Maximum Flow Rate: 450 gallons per minute (gpm).
Outer Diameter: 143.5 mm.
Inner Diameter: 96.5 mm.
Temperature Range: -30 °C to +100 °C.
Bypass Valve Cracking Pressure: 43 psi (3 bar).
Seal Material: Standard Nitrile (NBR) or Fluorocarbon Elastomer (FKM/Viton) depending on suffix variations
Specification
| Efficiency | Outer Diameter | Inner Diameter | Length | Bypass Pressure | Temperature Range |
| 5µ | 143.5 mm | 96.5 mm | 921.0 mm | 3.0 BAR bar | -30 - +100°C |

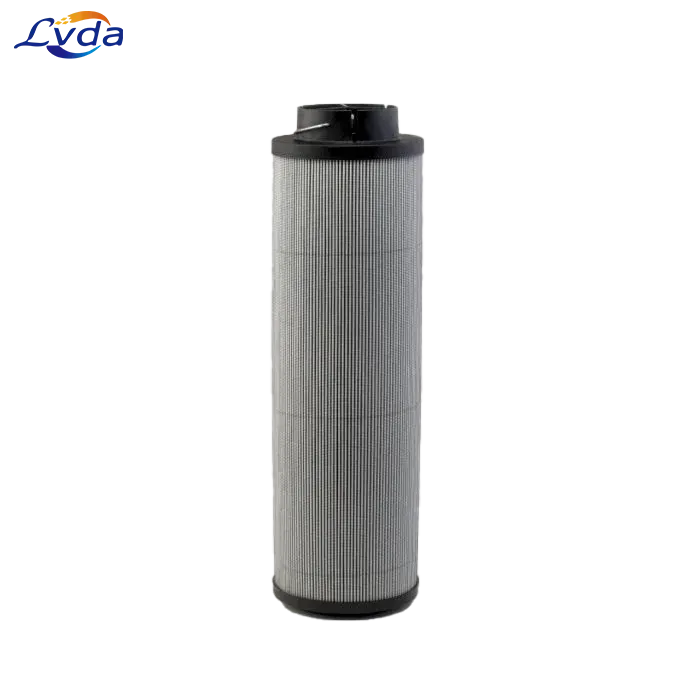

Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| HIFI | SH 74131 |
| AIRFIL | AFPOVL48463 |
| CATERPILLAR | 3I1824 |
| DONALDSON | P170887 , P560703 |
| EPPENSTEINER | 10.2600LAH3SL0006P , 10.2600LAH3XL0006P |
| FILTER MART | 051103 |
| FILTREC | RHR2600G03B3/AB1 |
| FILTREC OLD PN | RHR2600E03B , RHR2600G03B , RHR2600G03B/4 |
| HY-PRO | HP95RNL363MB |
| INTERNORMEN | 02.2600R.3VG.30.HC.S.P , 322788 |
| MP FILTRI | DK340A003ANCP01 |
| NORMAN | U4527 |
| PALL | HC2296FKP36H50 , HC2295FCP36H , HC2296FCP36H50 |
| PARKER | 934570 |
| PUROLATOR | 2600EAR032N1 |
| QUALITY FILTRATION | QH2600RA03B36 |
| REXROTH | 10.2600LAH3XL0006M , R928017686 |
| SCHROEDER | SBF2600RZ3B |
| SEPARATION TECHNOLOGIES | H260R03N |
| SOFIMA HYDRAULICS | SHR2600MS11 |
| STAUFF | RE600G03B , RE600G03B4 |
