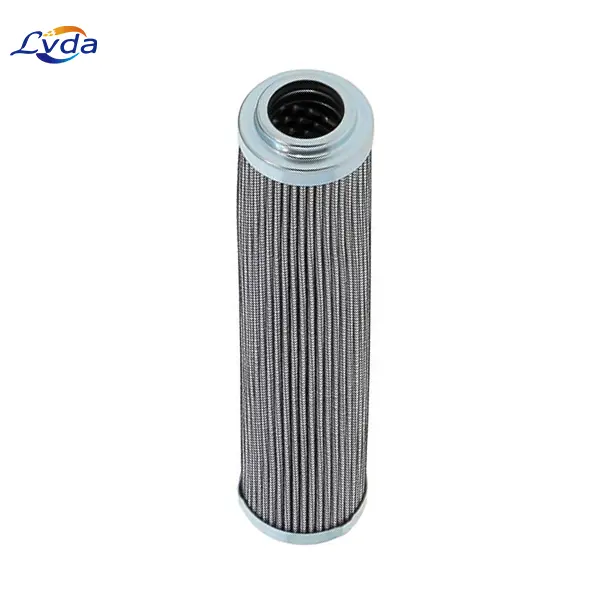

BE9020803A Pressure Line Filter
Categories:
Model Number :
- BE9020803A
- BE9020803AV
Lvda BE9020803A hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
We stock 10,000+ products, Please contact us for the latest quotation
7*24 Customer Service. Shipped Within 3 Days.
Filter compatible with BE9020803A
Compatible with OEM filter in fit, form and function.
Equipped with advanced filtration technology, these filters effectively remove particles, dirt, and impurities from hydraulic fluids or oil, preventing damage to critical components.
Specification
| Efficiency | Outer Diameter | Inner Diameter | Length | Collapse Pressure | Temperature Range |
| 3µ | 45.0 mm | 25.5 mm | 209.0 mm | 21 bar | -30 - +100°C |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| AIRFIL | AFKOVL91B3 |
| BALDWIN | H9045 |
| BOSCH | 9455251060 |
| CATERPILLAR | 3I1505 |
| DIAMOND | HD22403F |
| DONALDSON | P167838 |
| EPPENSTEINER | 16.9020H3LL205SP , 16.9020SH3SLE000P , 16.9020SH3XLE000P |
| FAI FILTRI | 01442408 |
| FAIREY ARLON | R920H0803A |
| FILTER MART | F90208K3B |
| FILTERSOFT | H9208MABL |
| FILTRATION GROUP | 7817927 , 9313265 , 891012SM3NBR |
| FINN FILTER | FC7122F003BS , FFKPVL171223ABS |
| FLEETGUARD | HF30436 , HF7044 |
| FLUID POWER EXPRESS | FA070128 |
| HY-PRO | HP20L83MB , HP8NL83MB |
| HYCON | H90208003BN |
| HYDAC | 02060836 , 10708D03BN |
| HYDRECO | EHP16B15 |
| IKRON | HEK8520203ASFG006LCB , HHC01908 , HHC01909 |
| INTERNORMEN | 301097 , 05.9020.3VG.10.E.P.8 |
| LUBER FINER | LH4236 |
| MOOG | 07160314 , B645702 |
| MP FILTRI | 6007021 , M4A03NA , PL0702A003ANP01 , US0702A003ANP01 |
| NELSON WINSLOW | 87831N |
| OMT | CHP283F03XN , CHP283FXN |
| PALL | HC9020FCP8H , HC9020FDP8H , HC9020FKP8H , HC9020FUP8H |
| PARKER | 928953 , 928953Q , G01403 , G03445 , PR3445 |
| PTI | FK020GGB |
| PUROLATOR | 1400EAM032N2 |
| QUALITY FILTRATION | QH9020A03B08 |
| REXROTH | 16.9020SH3XLE000M , 169020SH3XLE000M , R928016857 |
| SCHROEDER | 8YZ3 , SBF90208S1B , SBF90208Z1B , SBF90208Z3B |
| SEPARATION TECHNOLOGIES | 2902L03B08 , 2902L03B8 , 3902GGCB08 , 8902L03B08 |
| SF-FILTER | HY18303 , HY20503 |
| SOFIMA HYDRAULICS | CCH153FT1 , CH153FT11 , SGO1403FT11 |
| STAUFF | SP020E03B |
| STEP FILTERS | HID5132 |
| TRIBOGUARD | 902083UM |
| UFI | EPB13NFA |
| VICKERS | V3041B2C03 , V3042B2V03 |
| WESTERN | E3070BU03 |
| ZINGA | G0803L , G0803LN |
| HIFI | SH 57094 |
