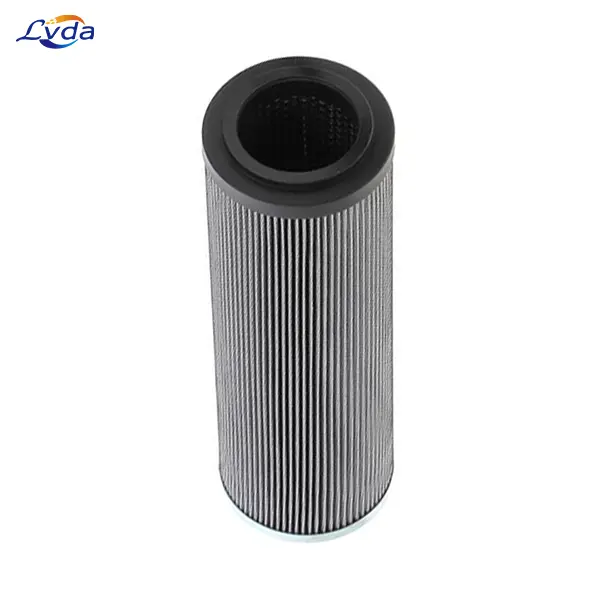

312066 Return Filter

01.E 631.3VG.16.S.P  / 312066 is a standard hydraulic return-line filter element.

01.E: Return-line filter element series (typically used in low-pressure lubrication and tank-mounted return lines).

631: Size / nominal flow rate capacity designation.

3VG: 3-micron filtration rating featuring a high-performance Glass fiber fleece medium.

16: Maximum collapse pressure resistance of 16 Bar (approx. 232 psi).

S: Equipped with an internal Bypass valve to protect the system and element from collapsing during cold starts or high differential pressures.

P: Nitrile (NBR) seals, fully compatible with standard mineral-based hydraulic fluids.

Specification

Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
