928642Q Hydraulic Oil Filter
- 928642Q
- 925666
- 932615Q
- 933577Q
- G01428
- G01432
- 927696

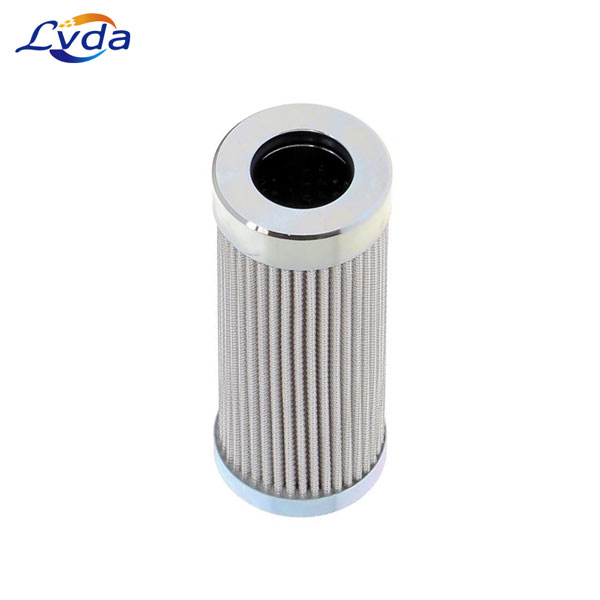

928642Q Hydraulic filter element is widely used in the hydraulic system, and lubricant system to filter the solid and colloidal particles, protect the system working safely and efficiently.
7*24 Customer Service. Shipped Within 3 Days.
Filter compatible with 928642Q
Meets or exceeds OEM Standards.
All filters are manufactured by an ISO Certified company.
Equipped with advanced filtration technology, these filters effectively remove particles, dirt, and impurities from hydraulic fluids or oil, preventing damage to critical components.
Specification
| Maximum Operating Pressure | Flow Rate | Micron Rating | Length | Outside Diameter |
| 210 bar | 35 l/min | 20 Micron | 112.5 mm | 45.5 mm |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| HYDAC | 10704D10BH , 10704D12BH , 02060862 , H90214017BH , H90214017BHV |
| DONALDSON | DT9021414UM , P167181 , P566336 |
| PALL | HC9021FDS4H , HC9021FKS4H , HC9021FKS4Z , HC9021FCS4H , HC9021FCS4Z , HC9021FUS4Z , HC9021FUS4H |
| BOSCH REXROTH | 1314P1H10XLC000M , 169021RH10XLF000M , R928034951 , R928016876 , R928016884 |
| EPE | 169021H10LL2115RP , 169021RH10SLF000V , 169021RH10XLF000V |
| MP FILTRI | HP0652A10HA , M1A10HA , HP0652A10H , US0701A010AHP01 , HP0652A10AH , HP0652A10AHP01 , 6008003 , HP652A10HA |
| BEHRINGER | BE9021412A , BE9021412AV , BE9021415AV |
| BOSCH REXROTH | R928016886 |
| BUSSE | HE013 |
| EPE | 2HF21H10SLC000V |
| FAIREY ARLON | R921H0415A |
| FILPRO | FP10-2117 |
| FILTER MART | F90214K12B , 282810 , 282992 , 50244 , F90214K12V |
| FINN FILTER | FC7121A010BS , FFKPVL17121A10ABS |
| FLEETGUARD | HF7449 |
| FLUITEK | FLK02-18766 |
| GENERAL ELECTRIC | 315A2660P003 , GE315A2660P00S |
| HY-PRO | HP21L4-15MB |
| IKRON | HHC01990 |
| INTERNORMEN | 05902110VG210EP4 , 301106 |
| MAIN FILTER | MF0058398 |
| MODINA | CH152FV21 |
| MOOG | 07160299 , B645651 , 07160299A , 07160299N , B645651A , B645651V |
| MP FILTRI | MP3802 |
| NORMAN ULTRAPOROUS | 535FB5C |
| OMT | CHP282GYN , CHP282F10YN |
| PTI | FK010JUB , FK010JUV |
| PUROLATOR | 1400EAH124F1 , 1400EAH124N1 , 9314351 , 9314354 |
| SCHROEDER | SBF90214S7B , SBF90214S7V , SBF90214Z10B , SBF90214Z10V |
| SEPARATION TECHNOLOGIES | 3902SGHB04 , 3902SGHV04 , 8902H15B4 |
| SF-FILTER | HY9406 , HY9406V |
| SOFIMA | CH152CD22 , CH152FD22 , CH152FD21 , CCH1522D1 , SGO1428FD21 |
| STAUFF | SP010F10B , SP010F15B |
| SWIFT | SF9021412UMV |
| TRIBOGUARD | 9021415UM |
| UFI | EPB12NHC , 14570415V , 7740412A12 |
| UNI-CARDAN | CHL282GYN |
| CHL282GYN | V3045B1H10 , V3045V1H10 , V3045B1V10 , V3045V1H15 |
| VMC | HF167181 |
| VOGELE | 9624291001 |
| WIX | 57855 |
| WOODGATE | WGH9204 |
| ZINGA | G0410H |
| HIFI FILTER | SH 57099 |
