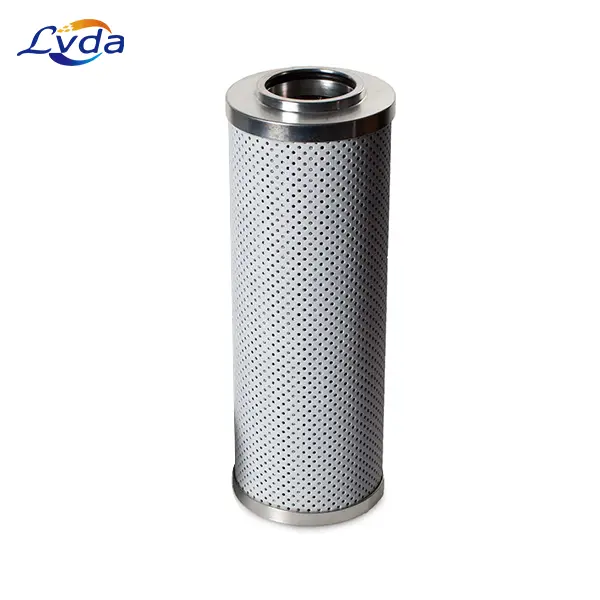

SBF-0500-DS3B Hydraulic Filter Element
Categories:
Model Number :
- SBF-0500-DS3B
- SBF-0500-DZ5B
- SBF-0500-DS3V
- SBF-0500-DZ5V
Lvda SBF-0500-DS3B hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
We stock 10,000+ products, Please contact us for the latest quotation
7*24 Customer Service. Shipped Within 3 Days.
Filter compatible with SBF-0500-DS3B
Compatible with OEM filter in fit, form and function.
Equipped with advanced filtration technology, these filters effectively remove particles, dirt, and impurities from hydraulic fluids or oil, preventing damage to critical components.
Specification
| Efficiency | Outer Diameter | Inner Diameter | Length |
| 5µ | 90.5 mm | 48.2 mm | 253.0 mm |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| HYDAC | 01260898 , 01330201 , 02055742 , 0500D005BN3HC , 0500D005BN2HC , 0500D005BNHC , 0500D005BN4HC , 0500D005ON , 0500D005ONPS , 1260898 , 1330201 , 2055742 |
| FILTREC | DHD500G05B |
| DONALDSON | DT-0500-D-8UM , P568714 |
| PARKER | 937078Q |
| PALL | HC2233FCN10H , HC2233FKN10H , HC2233FCN10Z , HC2233FKN10Z |
| BOSCH REXROTH | 9500PWR6A000M , 9500LAPWR6A000MSO3000 , R928017360 , R928017376 |
| EPE | 400HL500H6LLLA , 9500LAH6SLA000P , E400HL500H6LLLA , 9500LAH6SLA000MSO3000 |
| MP FILTRI | DC5001A06ANP , DP130A005ANP , MP4168 |
| PTI | H0500D006EB , H0500D006EV |
| PUROLATOR | 0500EAM062F1 , 0500EAM062N1 |
| UFI | 15201006 , 15201006V |
| BEHRINGER | BE500P06A , BE500P06AV |
| INTERNORMEN | 306231 , 020500D6VG30HCEP |
| HY-PRO | HP33DNL106MB |
| STAUFF | SE130G05B |
| FILTRATION GROUP | 76319727 , H0500DN2006 |
| WIX | D43B05GV |
| SOFIMA | SHD0500FC11 |
| SHD0500FC11 | SHD0500FC11 |
| NATIONAL FILTERS | PHY500-10-5G-V |
| FAI FILTRI | D0500A06NHA |
| FILPRO | FP10-2265 |
| FILTERMART | 051394 , 322352 |
| SF-FILTER | HY13115 |
| FLUITEK | FLK02-02981 |
| FLK02-02981 | 100-6630 |
| HIFI | SH 75050 |
