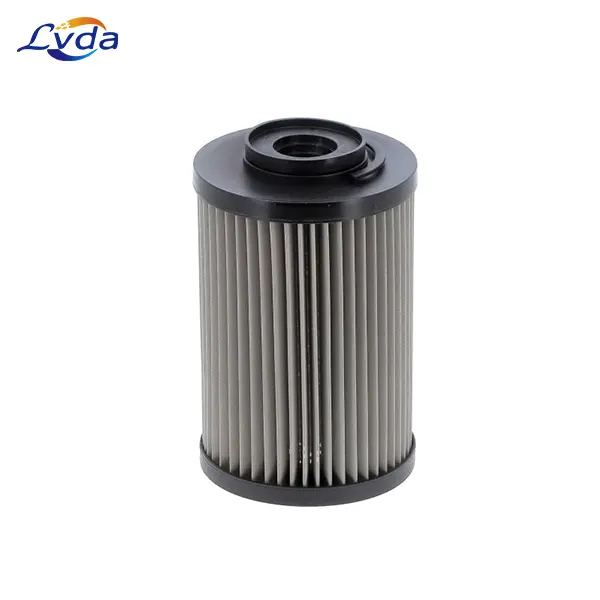

482015 Hydraulic Filter Cartridge
Categories:
Model Number :
- 482015
- 528012
- RE100MCV1
- TE150MCV1
- CRE100MN1
- CRE110MN1
- CRE100MN1M
Lvda 482015 hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
We stock 10,000+ products, Please contact us for the latest quotation
7*24 Customer Service. Shipped Within 3 Days.
Filter compatible with 482015
Compatible with OEM filter in fit, form and function.
Equipped with advanced filtration technology, these filters effectively remove particles, dirt, and impurities from hydraulic fluids or oil, preventing damage to critical components.
Specification
| Dimension 1 (D1) | Dimension 2 (D2) | Dimension 3 (D3) | Height 1 (H1) | Height 2 (H2) |
| 130.0 mm | 65.5 mm | 62.0 mm | 210.0 mm | 192.0 mm |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| DONALDSON | CR500 , P171560 , P171566 |
| FILTREC | R160T125B |
| MP FILTRI | MF4002M90NB , MF4002M90NBP01 , F40M90A , F4090 |
| AGCO | 6207974M1 |
| BEHRINGER | BEMF4890W , BEF400290W |
| CASE/CASE IH | 84162465 |
| DIAMOND | CR3390 |
| DMIC | D10300FN |
| F.B.O. | CR330 , CR500 , CR5006 |
| FAI FILTRI | F40M90 , F41M90 |
| FBN | FXRB2M90 |
| FILPRO | FP10-221353 , FP10-100800 |
| FILTER MART | 285645 , 391509 |
| FILTRATION GROUP | 7686496 , 7686678 , 852370DRG100 , 852379DRG100 , MP4002RN3100 |
| FISPA | LI2557 |
| FLUITEK | FLK02-09728 |
| HY-PRO | HPMF4L8-90WB |
| IKRON | HHC01375 , HHC01331 , HEK0240195ASMS090VMB17B , HEK0540195ASFB125VMB17B , HEK0540195FSFB125VMB17B , HHC01332 |
| LOESING | 140031 |
| MAIN FILTER | MF0062390 |
| MERLO | 635054 |
| NATIONAL FILTERS | RFC160-8-125SS-B |
| NEW HOLLAND | 84162465 |
| OMT | CR223R125R |
| RAMA MOTORI | JHP171560 |
| SF-FILTER | HY12106 , HY18247 |
| SWIFT | SFMF4-8-90UW |
| UFI | ERA52NMF , 7614200 |
| VMC | HF171566 |
| WIX | R27C125TB |
| WOODGATE | WGH9561 |
| HIFI | SH 63330 |
