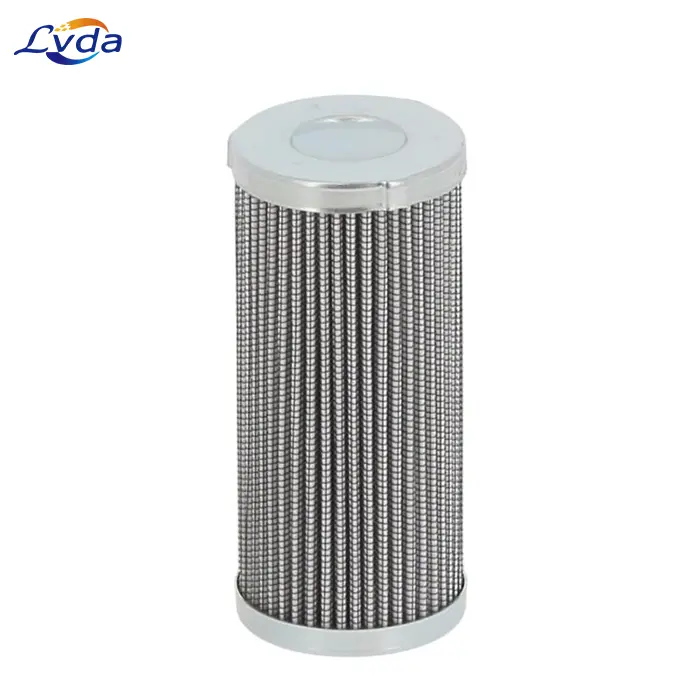

CH301FV11 Hydraulic Filter
Categories:
Model Number :
- CH301FV11
- CCH301FV1
- S8552HO
Lvda CH301FV11 hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
We stock 10,000+ products, Please contact us for the latest quotation
7*24 Customer Service. Shipped Within 3 Days.
Filter compatible with CH301FV11
Compatible with OEM filter in fit, form and function.
Equipped with advanced filtration technology, these filters effectively remove particles, dirt, and impurities from hydraulic fluids or oil, preventing damage to critical components.
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| Efficiency | 20µ |
| Outer Diameter | 50.0 mm |
| Inner Diameter | 24.5 mm |
| Length | 116.0 mm |
| FILTREC | D120G25A |
| AIRFIL | AFKOVL8525 |
| BALDWIN | H9110 |
| BEHRINGER | BE9800425A |
| CATERPILLAR | 3I1545 |
| DENNIS EAGLE | 630820 |
| DIAMOND | HD24025F |
| DONALDSON | 472.53 , P169797 , P171754 |
| DUPLOMATIC | FPMEF25S10N |
| EPPENSTEINER | 16.9800H20LL115RP , 16.9800RH20SLE000P , 16.9800RH20XLE000P |
| FAI FILTRI | 01445004 |
| FAIREY ARLON | R980H0425A |
| FARMER | 82484606003 |
| FBN | HI104679 |
| FILTER MART | F98004K25B |
| FILTERSOFT | H9804MFBL |
| FILTRATION GROUP | 7788458 , 891024SMX25NBR |
| FINN FILTER | 111120005 , FC7101F025BS , FFKPVL15005 , FFKPVL1710125 , FFKPVL1710125ABS |
| FLEETGUARD | HF30710 , HF7103 |
| FLUID POWER EXPRESS | FA070144 |
| HIAB FOCO | 7117697 |
| HYCON | H98004020 , H98004020BN |
| HYDAC | 02060947 , 11304D25BN |
| HY-PRO | HP80L425MB , HP80L485MB , HPQ98145 |
| IKRON | HEK8630108ASFG025LCB , HHC03164 , HHC30268 |
| INTERNORMEN | 301076 , 05.9800.25VG.10.E.P.4 |
| LUBER FINER | LH4252 , LH4513 |
| MANN + HUMMEL | HD509/2x |
| MASSEY FERGUSON | 1469597M1 |
| MP FILTRI | 6013007 , HP0502A25AN , PL1501A025ANP01 , US1501A025ANP01 |
| NELSON WINSLOW | 87850N |
| OMT | CHP423F25XN |
| PALL | HC9800FCT4H , HC9800FDT4H , HC9800FKT4H , HC9800FUT4H |
| PARKER | 930191 , FC7101Q020BS , G02750 , PR2750 |
| PTI | P98015JGB |
| PUROLATOR | 9800EAM202N1 , 9800EAM252N1 |
| QUALITY FILTRATION | QH9800A25B04 |
| RENAULT | 6005002335 , 16.9800RH20XLE000M , 169800RH20XLE000M , R928017017 |
| SCHROEDER | SBF98004S15B , SBF98004Z25B |
| SEPARATION TECHNOLOGIES | 2980L25B04 , 2980L25B4 , 3980GGMB04 , 8980L25B04 |
| SF-FILTER | HY20806 |
| STAUFF | SP024E20B |
| STEP FILTERS | HID5222 |
| TEREX | 9397253 , 15265317 |
| TRIBOGUARD | 9800425UM |
| UFI | 8505200 , EPB21NFD |
| VICKERS | V6011B1C20 |
| WESTERN | E6010B1U25 , 80741 |
| WIX | 92054 |
| WIX FILTRON | 6988N , 92054E |
| ZINGA | S0420L , S0420LN |
| HIFI | SH 57153 |
