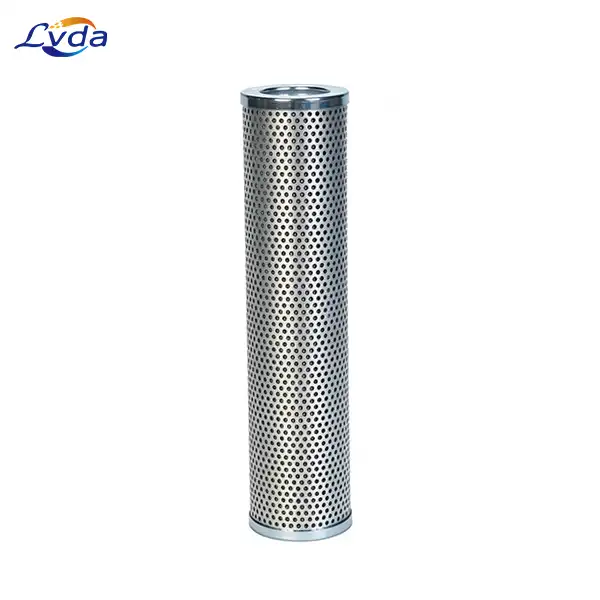

P171811 Hydraulic Filter Cartridge
- P171811
- CRS1601
P171811 is a hydraulic filter cartridge manufactured by lvda. It is primarily used to protect hydraulic systems by filtering out impurities from the fluid, thereby preventing wear on hydraulic components.
7*24 Customer Service. Shipped Within 3 Days.
Filter compatible with P171811
Compatible with OEM filter in fit, form and function.
Equipped with advanced filtration technology, these filters effectively remove particles, dirt, and impurities from hydraulic fluids or oil, preventing damage to critical components.
Specification
| Outer Diameter | Inner Diameter | Length | Efficiency Beta 2 | Efficiency Beta 1000 | Collapse Burst |
| 2.82 inch (71.6 mm) | 1.77 inch (45 mm) | 11.81 inch (300 mm) | 7 micron | 23 micron | 145 psi (10 bar) |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| CATERPILLAR | 3I2087 |
| DIAMOND | DHR0315 |
| HIFI | SH 53031 |
| FAI ESCAVATORI | 848101127 |
| FAI FILTRI | R1004P10A |
| FLEETGUARD | HF35113 |
| JCB | 58105609 |
| MAIN FILTER | MF0063415 |
| MP FILTRI | MR1004P10A , MR1004P10AP01 |
| NATIONAL FILTERS | RFC7101210PB |
| PARKER | 937724 , TXX3E10B |
| PUROLATOR | TX10EAL101N6 |
| SF-FILTER | HY2808 |
| SOFIMA HYDRAULICS | CRC140CD1 , RC140CD1 |
| SOTRAS | H11150P10 , SH8024 |
| STAUFF | RA180L10B |
| UFI | ERF14NCC |
| VICKERS | FT1004P10A |
