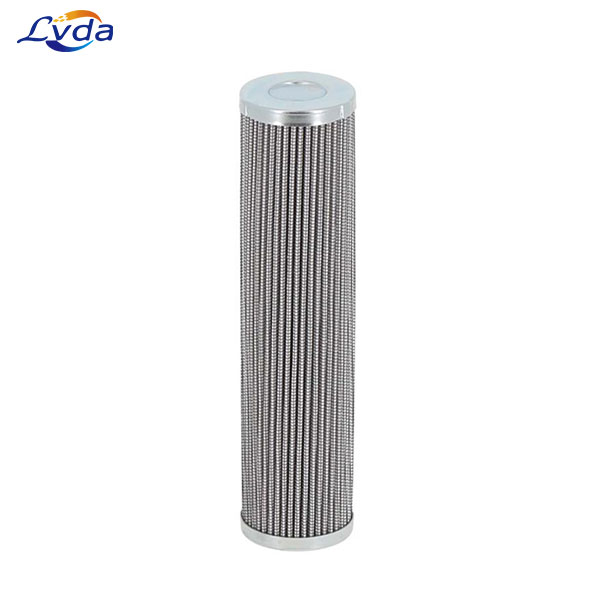

HC9800FKS8H Hydraulic Filter
- HC9800FKS8H
- HC9800FDS8H
- HC9800FDS8Z
- HC9800FKS8Z
- HC9800FUS8H
- HC9800FUS8Z
- HC9800FCS8H
- HC9800FCS8Z
Lvda HC9800FKS8H hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
7*24 Customer Service. Shipped Within 3 Days.
HC9800FKS8H is a high-efficiency hydraulic and lubrication oil filter element. It is widely used in industrial hydraulic systems, CNC machinery , and high-pressure lifelines to remove solid particulate contaminants and protect downstream precision components.
Micron Rating: 10–12 microns
Media Material: Pleated microglass (fiberglass layered with epoxy-coated steel support mesh).
Operating Pressure: Rated up to 21 bar (305 PSI), with high-pressure crush resistance.
Operating Temperature: -20°C to 100°C (-4°F to 212°F), usually paired with Viton (Fluorocarbon) seals for chemical and heat resistance.
Specification
| Efficiency | Outer Diameter | Inner Diameter | Length | Collapse Pressure | Temperature Range |
| 10µ | 50.0 mm | 24.5 mm | 209.0 mm | 21 bar | -30 - +100°C |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| AIRFIL | AFKOVL8610 |
| BALDWIN | H9113 |
| BEHRINGER | BE9800812A |
| BOSCH | 9455251071 |
| BRODDSON | B45043 |
| BUSSE | HE178 |
| CATERPILLAR | 3I1529 |
| COBANOGLU | 44410635 |
| DIAMOND | HD24210F |
| DONALDSON | 473.52 , P169449 , P171756 |
| DUPLOMATIC | FPHE100F10S10 , FPHE100F10S10L , FPMEF10L10N |
| EFFER | 8919333 |
| EPPENSTEINER | 16.9800H10LL205SP , 16.9800SH10SLE000P , 16.9800SH10XLE000P |
| FAI FILTRI | 01444908 |
| FAIREY ARLON | R980H0812A |
| FILTER MART | 281284 , F98008K12B |
| FILTERSOFT | H9808MDBL |
| FILTRATION GROUP | 7788474 , 891025SM10NBR |
| FINN FILTER | FC7102F010BS , FFKPVL1710210 , FFKPVL1710210ABS |
| FLEETGUARD | HF30244 , HF7106 |
| FLUID POWER EXPRESS | FA070143 |
| HIAB FOCO | 9827455 |
| HYCON | H98008010BN |
| HYDAC | 02060954 , 11308D12BN |
| HY-PRO | HP80L812MB , HP80L818MB , HPQ9816212MB |
| IKRON | HEK8630200ASFG010LCB , HHC03338 |
| ILVA | 272351 |
| INTERNORMEN | 301135 , 312776 , 05.9800.10VG.10.E.P.8 |
| LUBER FINER | LH4255 |
| MASSEY FERGUSON | 3615949M2 |
| MOOG | A37011 , B645732 |
| MP FILTRI | 6013025 , HP0504A10AN , PL1503A010ANP01 , US1503A010ANP01 |
| NELSON WINSLOW | 87853N |
| NORMAN | U2253 |
| OMB | 00100901F15 |
| OMT | CHP424F10XN |
| PALL | HC9800FCS8H , HC9800FDS8H , HC9800FKS8H , HC9800FUS8H |
| PARKER | 930193 , FC7102Q010BS , G02753 , PR2753 |
| PTI | P98030KGB |
| PUROLATOR | 9800EAM122N2 |
| QUALITY FILTRATION | QH9800A12B08 |
| REXROTH | 16.9800SH10XLE000M , 169800SH10XLE000M , R928017015 |
| SCHROEDER | SBF98008S7B , SBF98008Z10B |
| SCHWING | 10072694 |
| SEPARATION TECHNOLOGIES | 2980L12B08 , 2980L12B8 , 3980GGHB08 , 8980L12B08 |
| SF-FILTER | HY20805 , HY9333 |
| SOFIMA HYDRAULICS | CCH302FD1 , CH302FD11 |
| STAUFF | SP030E10B |
| STEP FILTERS | HID5225 |
| TRIBOGUARD | 9800812UM |
| UFI | EPB22NFC |
| VICKERS | V6011B2C10 , V6011B2V10 |
| WESTERN | E6010B2U10 |
| WIX | 57887 |
| ZINGA | S0810L , S0810LN |
| HIFI | SH 57156 |
