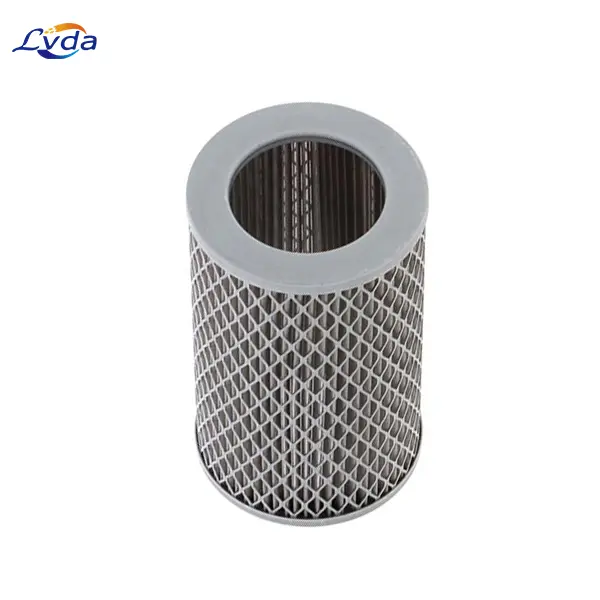

P171693 Hydraulic Suction Filter Element
Categories:
Model Number :
- P171693
- CF300
Lvda P171693 hydraulic filter replacement is built to offer equal or better filtration performance based on the original OEM filter specifications.
We stock 10,000+ products, Please contact us for the latest quotation
7*24 Customer Service. Shipped Within 3 Days.
P171693 is a high-quality hydraulic suction line filter cartridge . Unlike standard pressure or return line filters, this suction filter is specifically designed to protect the hydraulic pump from large debris and coarse particulate contaminants right as fluid is drawn from the reservoir.
Specification
| Efficiency 1 | Outer Diameter | Inner Diameter | Length | Seal Material | Temperature Range |
| 125µ | 120.0 mm | 77.0 mm | 198.0 mm | Viton | -25 - +120°C |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| HIFI | SH 63041 |
| FILTER MART | 60876 |
| HY-PRO | HPSF51125W |
| IKRON | HHC30033 |
| MAIN FILTER | MF0065784 |
| MP FILTRI | C2515M90A , SF503M90 , SF515M90 |
| NATIONAL FILTERS | SMP5158125SS |
| PM GRU | 811024 |
| SOFIMA HYDRAULICS | 20971 , CSF515MN1 , SSF515MCV |
| UFI | ESC71NMF |
