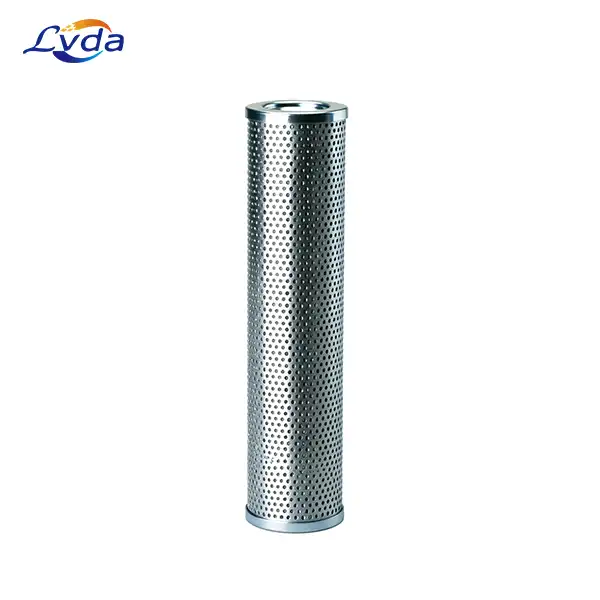

P171825 Hydraulic Filter
- P171825
- CRS16002
P171825 is a hydraulic filter cartridge primarily used in hydraulic systems. It features high-efficiency synthetic filter media designed to remove fine particulate contaminants from hydraulic fluid, and is commonly employed in industrial and heavy-duty machinery.
7*24 Customer Service. Shipped Within 3 Days.
Filter compatible with P171825
Compatible with OEM filter in fit, form and function.
Equipped with advanced filtration technology, these filters effectively remove particles, dirt, and impurities from hydraulic fluids or oil, preventing damage to critical components.
Specification
| Outer Diameter | Inner Diameter | Length | Efficiency Beta 1000 | Collapse Burst |
| 2.82 inch (71.6 mm) | 1.77 inch (45 mm) | 11.81 inch (300 mm) | 11 micron | 145 psi (10 bar) |
Our hydraulic filter is indicated as a replacement and is not manufactured by or affiliated with the OEM or Brand listed. Part numbers and names are used for cross reference only. The element may vary from the image displayed on the left.
| OEM Brand | Model Number |
|---|---|
| ATLAS | 1713844 , 3607792 |
| BUSSE | HE227 |
| DIGOMA | DGMH3ECC10 |
| HIFI | SH 53325 |
| FAI ESCAVATORI | 848101102 |
| FAIREY ARLON | TXW3ECC10 , TXW3EGDL10 |
| FBN | HI204697 |
| FILTER MART | 51505 , 324326 |
| FLEETGUARD | HF35121 |
| IKRON | HEK0820300ASFG010 , HHC01700 |
| JCB | 40300893 , 58100012 |
| MAIN FILTER | MF0063423 |
| MP FILTRI | MR1004A10A , MR1004A10AP01 |
| NATIONAL FILTERS | RFC7101210GB |
| PARKER | 937784Q , TXW3E10B |
| PUROLATOR | TX10EAL122N6 |
| SEPARATION TECHNOLOGIES | ST1746 |
| SF-FILTER | HY2838 |
| SOFIMA HYDRAULICS | CRC140FD1 , RC140FD1 |
| STAUFF | RA180E10B |
| STEP FILTERS | HID24615 |
| UFI | ERF14NFC |
| VICKERS | FT1004A10A |
